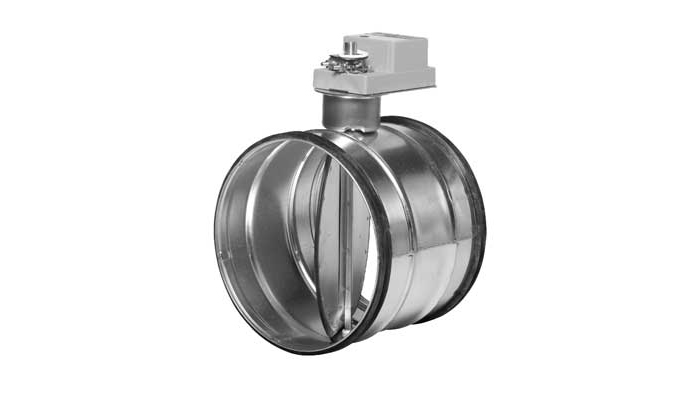

DTFUShut-off damper

Shut-off damper with electric motor LMQ 24A or LMQ 24A-SR.

Consists of a DTU damper with a 24 V electric motor added.

The motors stops at its end position and is not damaged by blockage, although system voltage remains.

In outdoor installations, the motor must be protected from rain and direct UV radiation.

The motor is installed at a distance from the damper, which makes it easy to insulate the ventilation duct.

There is a separate assembly, measuring, balancing and maintenance instruction for this product.

Ø 80–250 fullfills pressure class C in closed position.

The torque needed for motorizing is given in the adjacent table.
