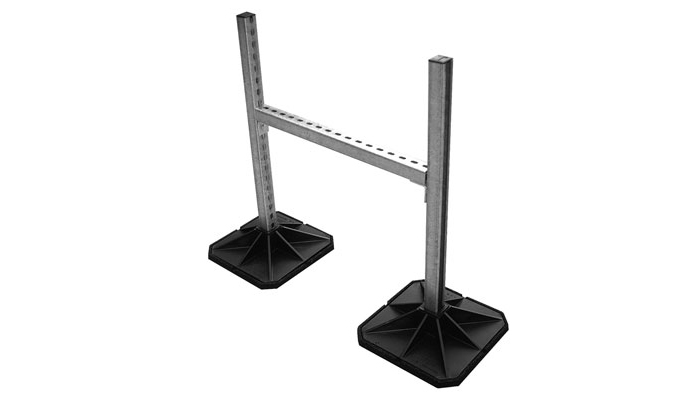

HFSH Frame support system

The Lindab H frame set is a quick, versatile and economical solution for supporting ductwork, pipework or cable trays. Using the inserts supplied the feet are adapted to accommodate channel support system RPC 41×41 mm (not included in kit).

The boxed kit, complete with a pair of feet with strut insert, angled brackets, fixing bolts and channel nuts to mechanically fix to strut. Strut not included with HFrame set, to be ordered seperately.

Construction - The Lindab Big Foot plastic mounting feet for the modular framework system are manufactured from UV protected Nylon 6 B601L 30% Glass fibre filled.

Metal components are manufactured from hot dipped galvanised steel and comply with EN10219 S235 J0H, EN10219 S275 J2H & EN10219 S355 J2H.

Features - Non penetrative load management, cost efffective, pre-fabricated support system. Interchangable with three strut sizes.

Rubber crumb foot mat for roof finish protection. Versatile application, boxed for convenience.
